Specifications
General Information
| Parameter | Detail |
|---|---|
| Product Grade | TUB121N3000 |
| Polymer Type | High-Density Polyethylene (HDPE) |
| Manufacturer | PetroChina Dushanzi Petrochemical Company |
| Production Process | Innovene S Low-Pressure Slurry |
| Molecular Structure | Bimodal |
| Comonomer | Hexene-1 |
| Catalyst System | Titanium (Ti) |
| Execution Standard | Q/SY DS060-2014 |

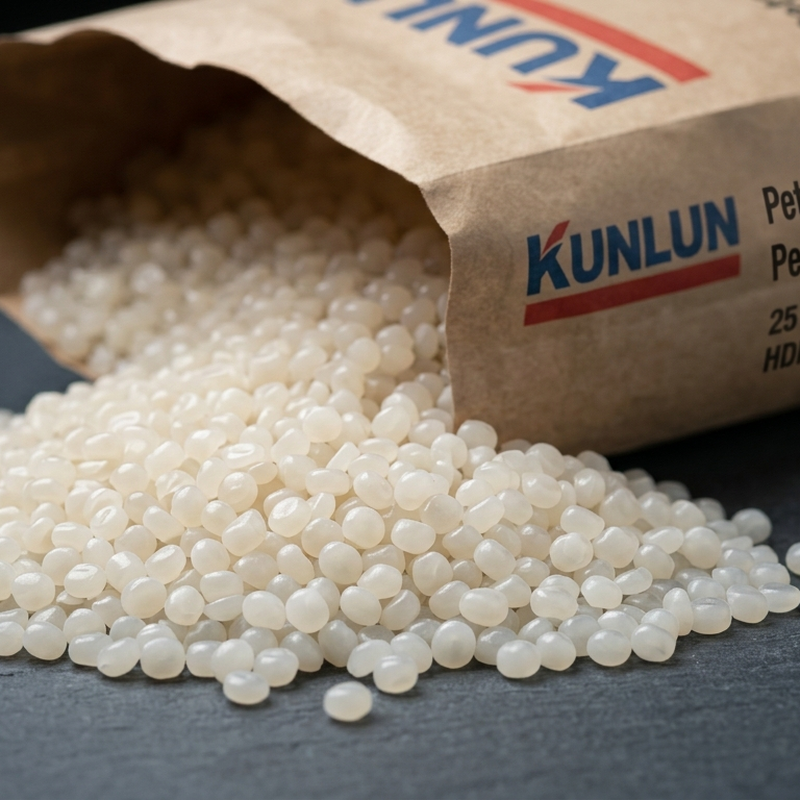

| Appearance | Natural-colored pellets; no black particles; no impurities |
Technical Properties
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Coloring (particle appearance) | 0 | pcs/kg | SH/T 1541—2006 |
| Over/undersized pellets | 0.1 | g/kg | SH/T 1541—2006 |
| Melt Flow Rate (5.0 kg load) | 0.29 | g/10min | Q/SY DS 0507 |
| Density | 949.8 | kg/m³ | ISO 1183:2004 |
| Tensile Strength at Yield | 22.9 | MPa | Q/SY DS 0501 |
| Elongation at Break | 704 | % | Q/SY DS 0501 |
| Charpy Impact Strength | 32.8 | kJ/m² | Q/SY DS 0503 |
Recommended Processing Conditions
| Grade | Barrel Temp (°C) | Die Temp (°C) | Melt Temp (°C) |
|---|---|---|---|
| TUB121N3000 | 190–230 | 200–220 | 190–230 |
*Processing conditions are for reference only. Actual parameters depend on extruder configuration, screw design, and pipe wall thickness.*
Applications
TUB121N3000 is engineered for three specific pipe constructions, each placing different demands on the resin.
PE100 water supply pipes are the primary application. PE100 classification requires the resin to support defined minimum required strength values under long-term hydrostatic stress — a threshold that rules out most standard HDPE grades. The bimodal molecular structure of TUB121N3000, with its high-molecular-weight fraction providing slow crack growth resistance, is the basis for meeting PE100 performance criteria. Municipal drinking water networks, agricultural irrigation mains, and industrial process water lines all specify PE100 pipe where operating pressures and 50-year service life requirements exceed what PE80 materials can deliver.
Steel skeleton composite pipes pair an HDPE matrix with a welded steel wire or mesh reinforcement frame. The steel carries hoop stress under pressure while the HDPE provides the chemical barrier and flexibility. At the interface between the two materials, thermal expansion differentials and mechanical cycling create continuous low-level stress on the polymer matrix. The 704% elongation at break and 32.8 kJ/m² Charpy impact strength of TUB121N3000 provide the deformation tolerance the composite structure needs to absorb those stresses without delamination or cracking at the reinforcement contact points.
Steel band reinforced corrugated pipes serve large-diameter drainage and buried infrastructure applications where ring stiffness is critical. The corrugated profile requires the resin to flow consistently through complex die geometry, and the corrugation geometry itself concentrates mechanical stress at the profile roots during soil loading. Low MFR ensures the melt fills the die evenly, while the bimodal molecular architecture provides crack initiation resistance at the stress concentration points over the pipe's service life.
Why Source Through BASTONE
BASTONE distributes TUB121N3000 as part of its PetroChina petrochemical portfolio. Dushanzi production follows PetroChina's quality management system, and every batch BASTONE ships includes a COA traceable to the specific production lot. Buyers operating ISO-certified pipe extrusion lines or conducting incoming material inspection can verify compliance against the production batch data without arranging third-party testing at their own cost.
The BASTONE group maintains an active R&D center alongside its four production sites. For buyers evaluating HDPE pipe grades, that organizational structure means BASTONE's team can engage on technical grade selection questions — MFR differences between pipe grades, implications of molecular weight distribution for wall thickness uniformity, suitability for specific pipe diameter and pressure class combinations. Pure trading houses can only relay the datasheet; BASTONE can engage the technical context behind it.
Export handling runs through Zhejiang Bastone Technology Co., Ltd. Documentation packages cover commercial invoice, packing list, bill of lading, COA, MSDS, and customs declaration. Trade terms are negotiable based on buyer preference and destination port requirements. Sample quantities are available for incoming QC testing or trial extrusion runs before buyers commit to commercial volumes.
Sourcing & Logistics
| Parameter | Detail |
|---|---|
| Supply Origin | PetroChina Dushanzi Petrochemical Company, Xinjiang, China |
| Packaging | 25 kg bags; bulk bags available on request |
| Export Entity | Zhejiang Bastone Technology Co., Ltd |
| Documentation | COA, MSDS, commercial invoice, packing list, B/L, customs declaration |
| Trade Terms | FOB, CIF, CFR (negotiable) |
| Port of Loading | Xingang (Tianjin) or Shanghai |
| Sample Availability | Available on request prior to commercial order |
