INEOS GP-22 General Purpose ABS Resin for Injection Molding

INEOS GP-22 is an easy-flow, general-purpose Acrylonitrile Butadiene Styrene (ABS) injection molding grade.

BASTONE Petrochem distributes the medium-flow polymer to downstream manufacturers requiring high impact resistance, heat distortion stability, and excellent surface gloss for appliance housings, automotive components, and consumer goods.

Contact us

Description

INEOS GP-22 is a general-purpose Acrylonitrile Butadiene Styrene (ABS) resin designed specifically for injection molding processes. Manufacturers select the GP-22 grade for its balance of medium flow characteristics and high mechanical strength. The material achieves a Melt Volume Rate of 19 cm³/10 min at 220 °C/10 kg, allowing production engineers to fill complex mold cavities without sacrificing the final part's structural integrity.

Mechanical performance remains a primary reason buyers specify INEOS GP-22. The polymer delivers an Izod Notched Impact Strength of 26 kJ/m² at 23 °C and maintains 8 kJ/m² even at -30 °C. Such impact resistance ensures end products survive drops and mechanical shocks during daily consumer use. Thermal stability also stands out, with a Vicat Softening Temperature reaching up to 105 °C (VST/A/50), preventing deformation in heat-generating appliances.

BASTONE Petrochem supplies INEOS GP-22 directly to injection molding facilities worldwide. Procurement teams sourcing ABS through our Zhejiang Bastone Technology Co., Ltd platform receive full Certificate of Analysis (COA) documentation with every shipment. We ensure batch traceability and consistent material properties, preventing the processing variations that often plague buyers purchasing from spot-market resellers.

Factory and Activities

INEOS GP-22 General Purpose ABS Resin for Injection Molding - BASTONE Petrochem

Specifications

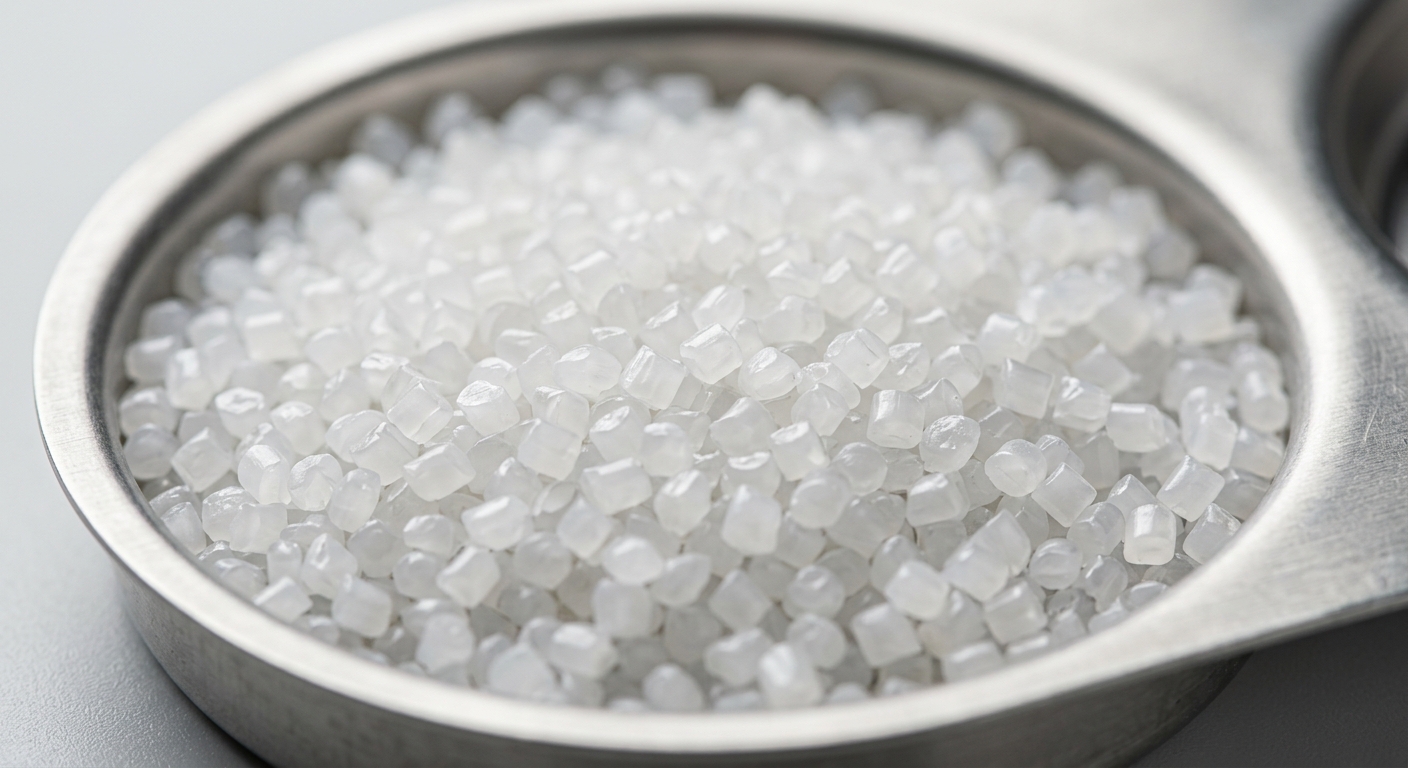

INEOS GP-22 resin pellets
INEOS GP-22 resin pellets — factory-direct from PetroChina

General Information

Property Detail
Product Name INEOS GP-22
Polymer Type Acrylonitrile Butadiene Styrene (ABS)
Processing Method Injection Molding
Appearance Uncolored (Typical Yellowness Index: 13)
Density 1040 kg/m³ (ISO 1183)

Technical Properties

Property Test Condition Standard Unit Value
Melt Volume Rate 220 °C / 10 kg ISO 1133 cm³/10 min 19
Izod Notched Impact Strength 23 °C ISO 180/A kJ/m² 26
Izod Notched Impact Strength -30 °C ISO 180/A kJ/m² 8
Charpy Notched Impact Strength 23 °C ISO 179/1eA kJ/m² 22
Charpy Notched Impact Strength -30 °C ISO 179/1eA kJ/m² 8
Charpy Unnotched Impact Strength 23 °C ISO 179/1eU kJ/m² 180
Charpy Unnotched Impact Strength -30 °C ISO 179/1eU kJ/m² 100
Tensile Stress at Yield 23 °C ISO 527 MPa 45
Tensile Strain at Yield 23 °C ISO 527 % 2.6
Tensile Modulus 23 °C ISO 527 MPa 2300
Nominal Strain at Break 23 °C ISO 527 % 10
Flexural Strength 23 °C ISO 178 MPa 65
Hardness, Ball Indentation - ISO 2039-1 MPa 97
Vicat Softening Temperature VST/B/50 (50N, 50 °C/h) ISO 306 °C 96
Vicat Softening Temperature VST/A/50 (10N, 50 °C/h) ISO 306 °C 105
Heat Deflection Temperature A Annealed 4 h/80 °C; 1.8 MPa ISO 75 °C 94
Heat Deflection Temperature B Annealed 4 h/80 °C; 0.45 MPa ISO 75 °C 99
Coefficient of Linear Thermal Exp. - ISO 11359 10^-6/°C 80 - 110
Thermal Conductivity - ISO 22007-4 W/(m K) 0.17
Dissipation Factor 100 Hz IEC 62631-2-1 10^-4 48
Dissipation Factor 1 MHz IEC 62631-2-1 10^-4 79
Relative Permittivity 100 Hz IEC 62631-2-1 - 2.9
Relative Permittivity 1 MHz IEC 62631-2-1 - 2.8
Volume Resistivity - IEC 62631-3-1 Ohm*m >10^13
Surface Resistivity - IEC 62631-3-1 Ohm >10^13
Water Absorption Saturated at 23 °C ISO 62 % 1
Moisture Absorption Equilibrium 23 °C/50% RH ISO 62 % 0.22

Recommended Processing Conditions

Processing Parameter Standard Unit Value Range
Linear Mold Shrinkage ISO 294-4 % 0.4 - 0.7
Melt Temperature Range ISO 294 °C 220 - 260
Mold Temperature Range ISO 294 °C 30 - 80
Injection Velocity ISO 294 mm/s 200
Drying Temperature - °C 80
Drying Time - h 2 - 4

Note: Processing data stated are indicative and may vary depending on individual processing complexities and machinery.

Applications

Injection molding facilities process INEOS GP-22 into appliance housings and household sanitary components. The resin's excellent colorability and high-quality surface gloss allow manufacturers to produce visually appealing exterior casings for consumer electronics. High heat distortion resistance ensures the plastic maintains its shape when enclosing motors or heating elements in small kitchen appliances.

Automotive component manufacturers rely on the material's mechanical strength and rigidity. Parts molded from GP-22 withstand significant physical stress and temperature fluctuations inside vehicle cabins. The polymer's ability to retain an Izod notched impact strength of 8 kJ/m² at -30 °C prevents interior trim components from becoming brittle during winter conditions.

Toy manufacturers and consumer product designers specify the GP-22 grade for its reliable flow properties and dimensional stability. A linear mold shrinkage rate of 0.4 to 0.7 percent gives toolmakers precise control over final part dimensions. Predictable shrinkage prevents warping and ensures snap-fit components assemble correctly on the production line.

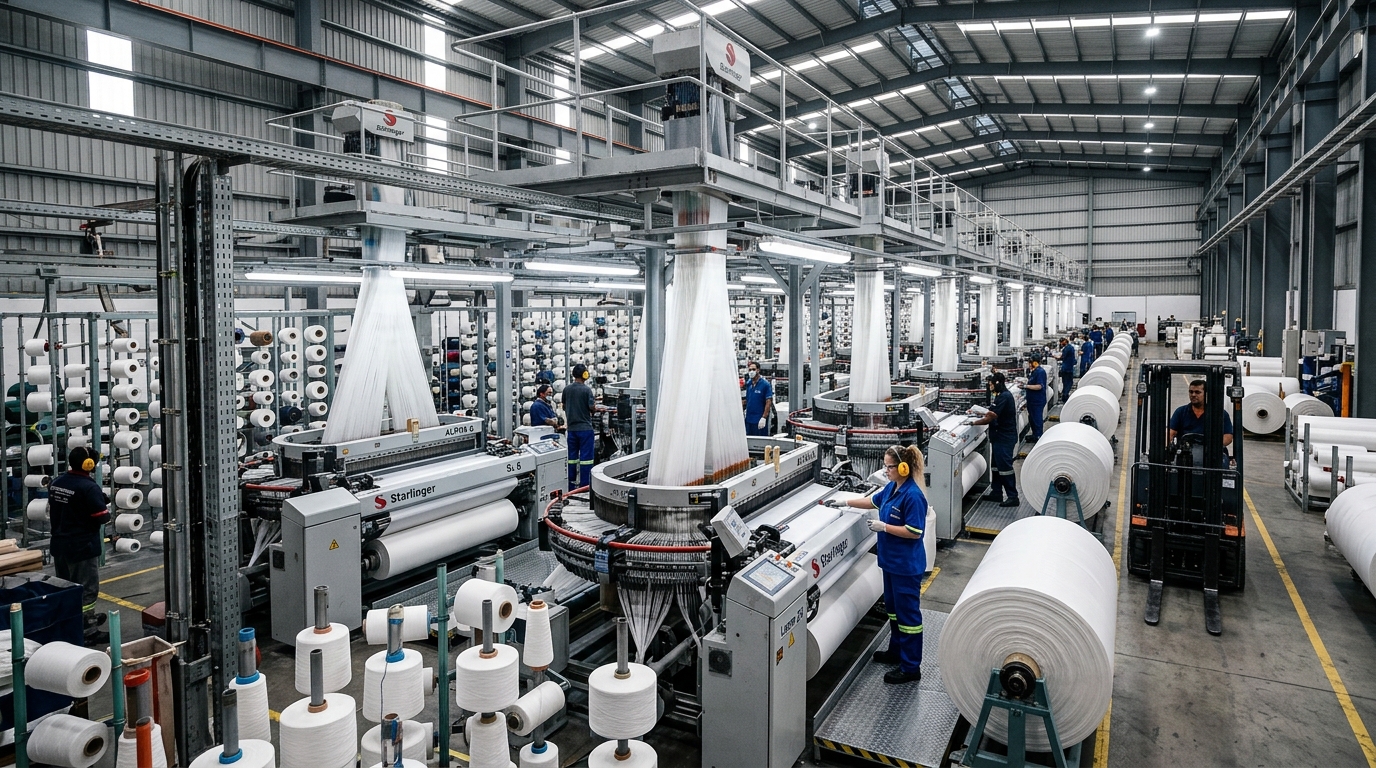

Woven bag production facility using PP resin
Woven bag production facility using PP resin

Why Source Through BASTONE

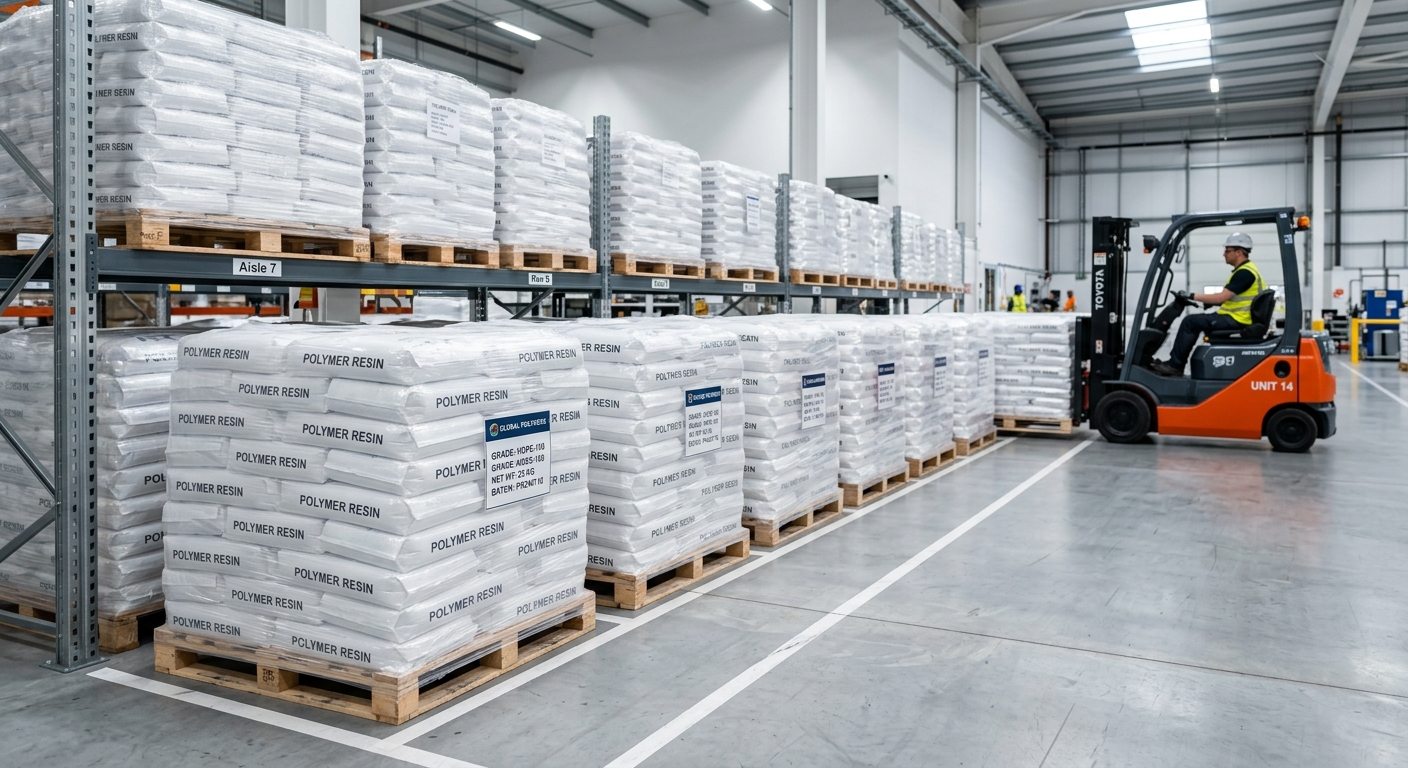

BASTONE warehouse
BASTONE warehouse — ready for export shipment

BASTONE Petrochem operates as an authorized distributor for China's top petrochemical producers, holding listed distributor status with SINOPEC. We supply INEOS GP-22 with complete batch traceability and factory-issued COA documentation. Buyers avoid the risks associated with unauthorized trading houses, ensuring the ABS resin arriving at their facility matches the exact specifications required for their molding machines.

Our parent company operates four production sites and a dedicated R&D center, giving our team deep technical insight into polymer processing. BASTONE supply chain specialists understand how variations in melt volume rate or moisture absorption affect your injection molding cycle times. We help procurement managers align their raw material sourcing with actual factory-floor realities.

Through our export platform, Zhejiang Bastone Technology Co., Ltd, we coordinate complex international shipments. Our logistics team manages container loading, export customs clearance, and maritime freight scheduling. We adapt trade terms and packaging configurations to match the specific receiving capabilities of your manufacturing plant.

Sourcing & Logistics

Sourcing Detail Specification
Exporting Entity Zhejiang Bastone Technology Co., Ltd
Supply Origin China
Packaging Options 25kg standard bags, Jumbo bags (customizable based on MOQ)
Documentation Factory COA, Commercial Invoice, Packing List, Bill of Lading, SDS
Trade Terms FOB, CIF, CFR, DAP (subject to destination port)
Sample Availability Available upon request for R&D and machine trial purposes
